Auto Parts Vacuum Urethane Casting

Vacuum casting technology offers a wide variety of materials to facilitate the creation of cast urethane parts, typically for functional test, pre-production evaluation and low volume production. Cast auto urethane parts are quick and inexpensive without the need to invest any metal tooling when quantities are only dozens of short runs, and can be delivered within weeks in most instances. The following is about Auto Parts Vacuum Urethane Casting.

Send Inquiry

Product Description

Auto Parts Vacuum Urethane Casting



Vacuum casting technology offers a wide variety of materials to facilitate the creation of cast urethane parts, typically for functional test, pre-production evaluation and low volume production. Cast auto urethane parts are quick and inexpensive without the need to invest any metal tooling when quantities are only dozens of short runs, and can be delivered within weeks in most instances. We will usually satisfy our respected shoppers with our superior good quality, fantastic selling price and good company due to we're a lot more expert and far more hard-working and do it in cost-effective way for China OEM China OEM Aluminum Die Casting Auto Parts Vacuum Urethane Casting, We hope we can easily have a friendly partnership with businessman from all around the globe. China OEM China Die Casting Parts, Die Casting Aluminum, We have now established long-term, stable and good business relationships with many manufacturers and wholesalers around the world. Currently, we have been looking forward to even greater cooperation with overseas customers based on mutual benefits. You should feel free to contact us for more details.


1.Product ParameterforAuto Parts Vacuum Urethane Casting



Standard lead time

Up to 10 copies within 15 working days

Standard accuracy

±0.3% (with lower limit on ±0.3 mm on dimensions smaller than 100 mm)

Minimum wall thickness

To ensure that the mold is filled properly, a wall thickness of at least 0.75 mm is necessary. For best results, we recommend a wall thickness of at least 1.5 mm

Maximum part dimensions

The size of the mold is limited by the dimensions of the vacuum chamber (1900 x 900 x 750 mm) and by the volume of the product (maximum volume: 10 liters)

Typical quantities

Up to 25 copies per mold (depending on the mold’s complexity and the casting materials)

Surface structure

High-quality surface finish comparable to injection molding


2.Product Feature forAuto Parts Vacuum Urethane Casting


Advantages of  Auto Parts Vacuum Urethane Casting

·Great for low volumes

·Self-coloured parts

·Low upfront investment

·Production like parts

·Massive range of materials

·Rubber like parts and over molds


3.Product Details forAuto Parts Vacuum Urethane Casting


Silicone molding results in high-quality parts comparable to injection-molded components. This makes vacuum casted models especially suitable for fit and function testing, marketing purposes or a series of final parts in limited quantities. Vacuum Casting also lends itself well to a variety of finishing degrees, and we can match the finish you need for your parts.

how It Works (3 Stages)

Master model – CNC machined or 3D printed via SLA or SLS

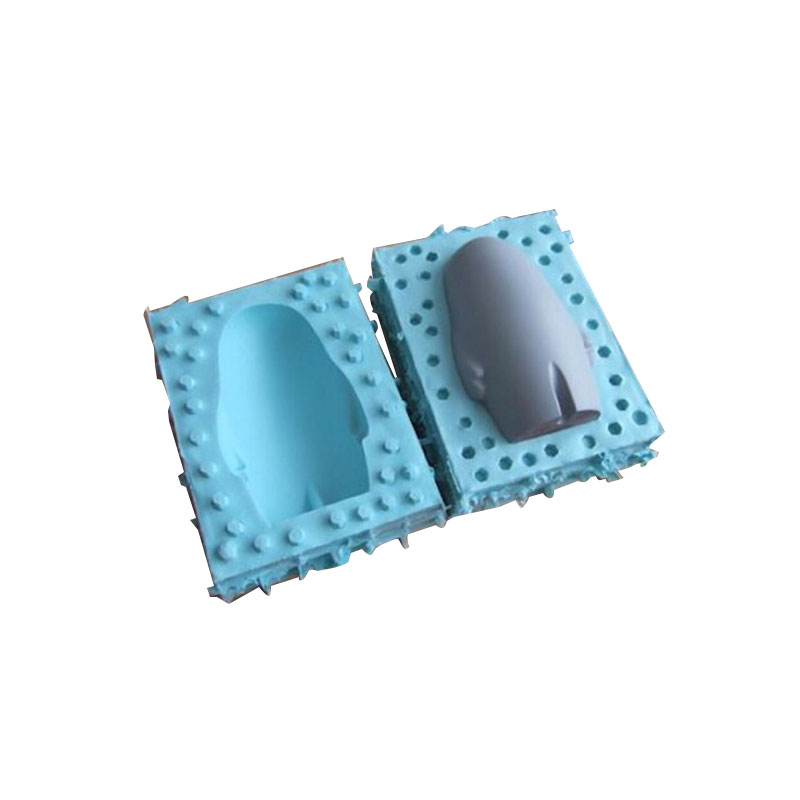

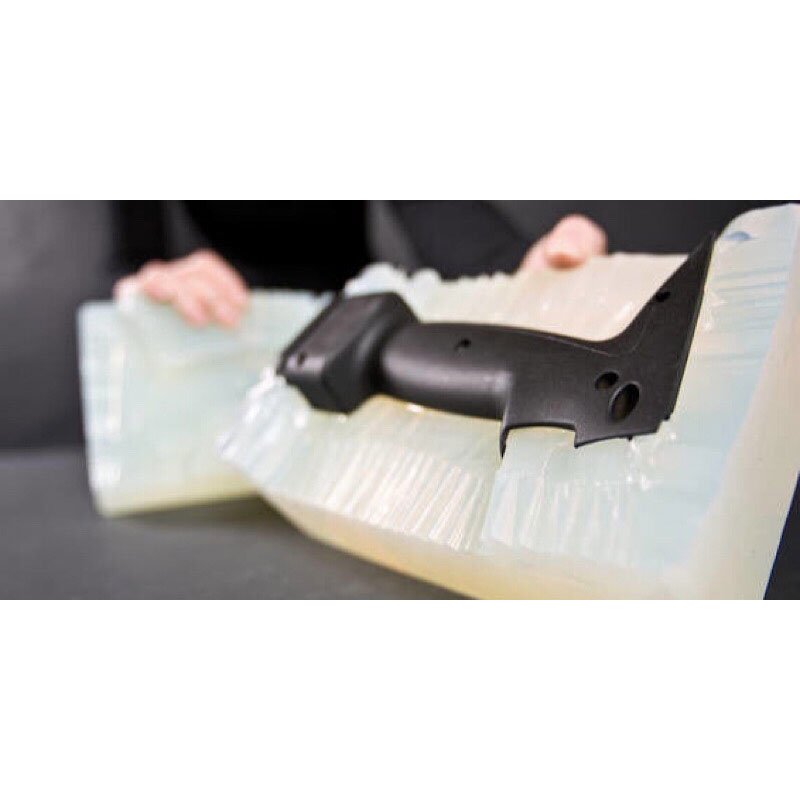

Silicone tool – liquid silicone is poured around the master model and cured. Once dry the master is cut from the mold to leave the cavity
Castings – the resin is poured into the cavity to create a production like replica


4.Product Application for Auto Parts Vacuum Urethane Casting


Vacuum casting parts are widely used, and almost all products that can use metal parts can be used. Such as aerospace products, auto parts, electronic products, mechanical equipment parts, medical equipment, defense and military supplies.


5.FAQ


Q1:Where can I get product&price information?

A1:Send us inquirye-mail, we will contact you as we receive your mail.

Q2:How long can i get the sample?

A2:Depends on your specific items,within 3-7 days is required generally.

Q3:What's kinds of information you need for quote?

A3:Kindly please provide the product drawing in PDF,and will be better you can provde in STEP or IGS, send the parts materials, quantity, surface finishing and other requirements to us as well.

Q4: what's the payment terms?

A4: We accept 50% as payment deposit, when the goods is done, we take photoes for your check and you then pay the balance.

For small amount, we also accept Paypal, Paypal commission will be added to the order. For big amount, T/T is preferred

Q5.Are you a trading company or factory?

A5:We are direct factory with 10 experienced engineers and more than 30 employees as well approximate 3,000 square meters workshop area.

Q6. What shall we do if we do not have drawings?

Please send your sample to our factory,then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions(Length,Hight,Width),CAD or 3D file will be made for you if placed order.

Q7. Can we get some samples before mass production?

A7:Absolutely

Q8. What is your MOQ?

Our MOQ is 1pcs, it is also our one of advantage, even you have less budget, or want to reduce the risks before production, we both can accept the less MOQ.

Q9: Will you do 100% inspection or random inspection ?

We will do 100% inspection for samples, random inspection for mass production. When manufacturing, we will control the dimensions , do PQC in mass production.

Q10. How to do if the parts not match with drawings we received?

Contact us immediately, send the pictures and tell us the issues, we will check and repair or re-make the goods with free.

Q11. You will how to ship the parts to me?

When products finished, also passed by our QC, we will ship out the parts to you by DHL, Fedex , or by sea after communication


6.Deliver,Shipping for Auto Parts Vacuum Urethane Casting
